Access structure

Access structure is used to model hierarchical access in an environment for both internal users and external users.

An access structure can represent customers, departments, responsibilities, roles, or similar business access groupings. Users are assigned through memberships to a node in the structure, and the effective access is resolved during login.

Access structure and nodes

Each access structure contains a single node hierarchy with exactly one root node.

A node contains:

A name
Optionally claims that describe the access represented by the node
Optionally child nodes below it in the hierarchy

The hierarchy can be used to model access such as:

Customer → Department → Role
Organisation → Team → Responsibility
Partner → Region → Function

Example: Acme Corp access structure

The following example models access for the Acme Corp customer with a finance department and an approver role:

Acme Corp (customer=acme)
  Finance (department=finance)
    Approver (role=approver)

In the access structure settings, the top node is Acme Corp with the customer=acme claim. The Finance child node adds the department=finance claim, and the Approver child node adds the role=approver claim.

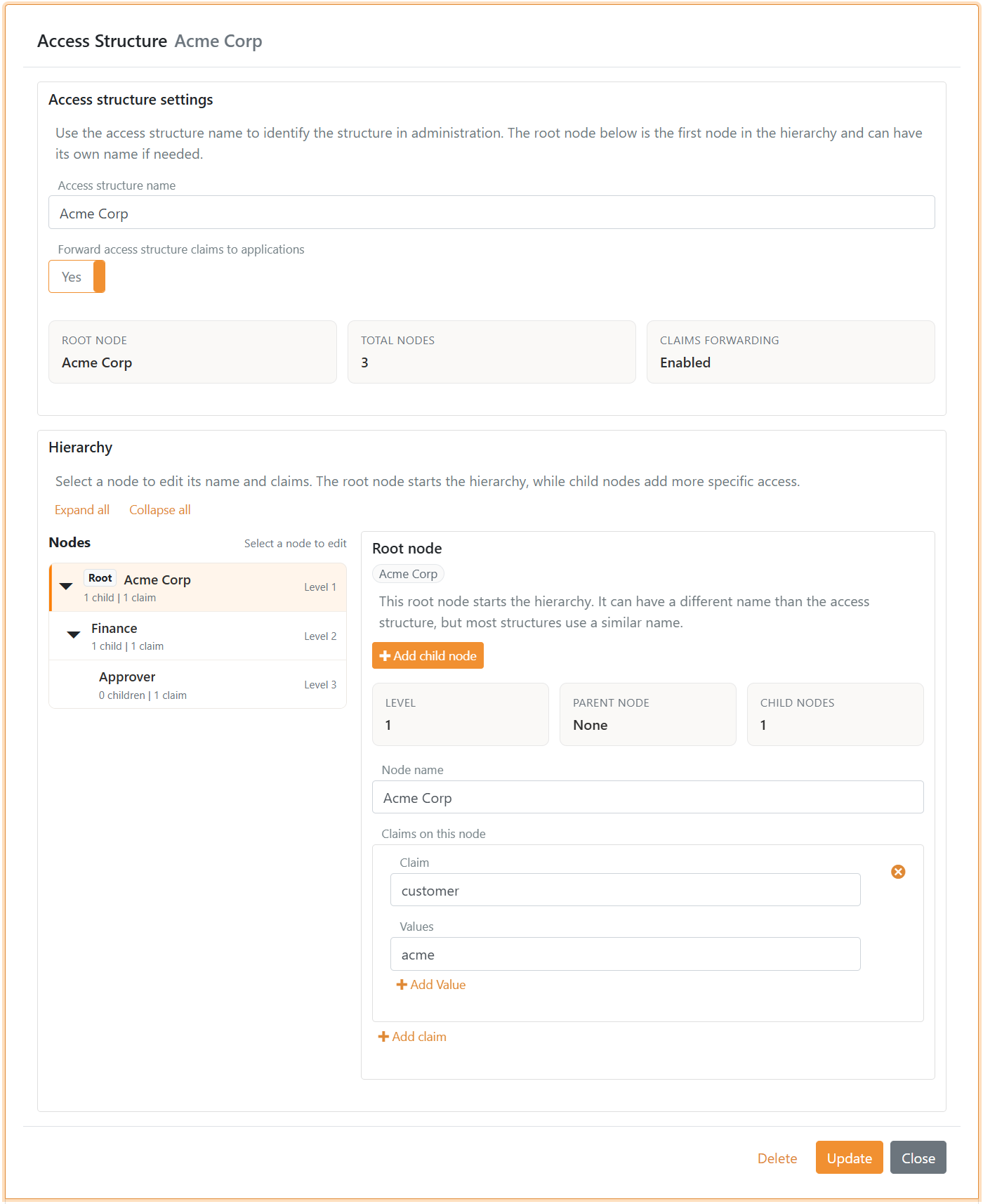

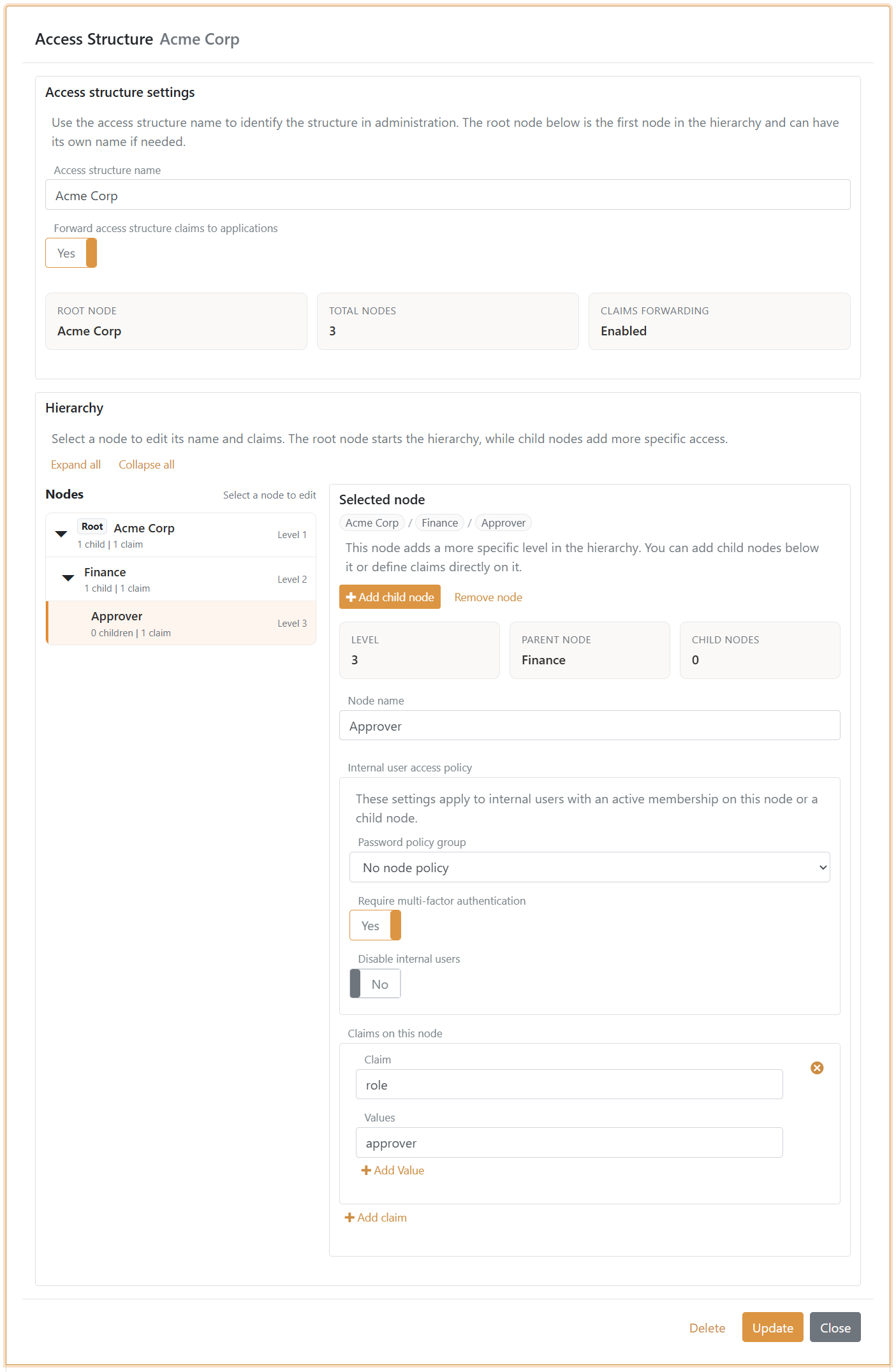

Access structure settings with Acme Corp, Finance, and Approver nodes

When a user is assigned through a membership to the Approver node, FoxIDs resolves the hierarchy from Approver to Acme Corp.

In claim transforms, the resolved values are available as _local: access claims.

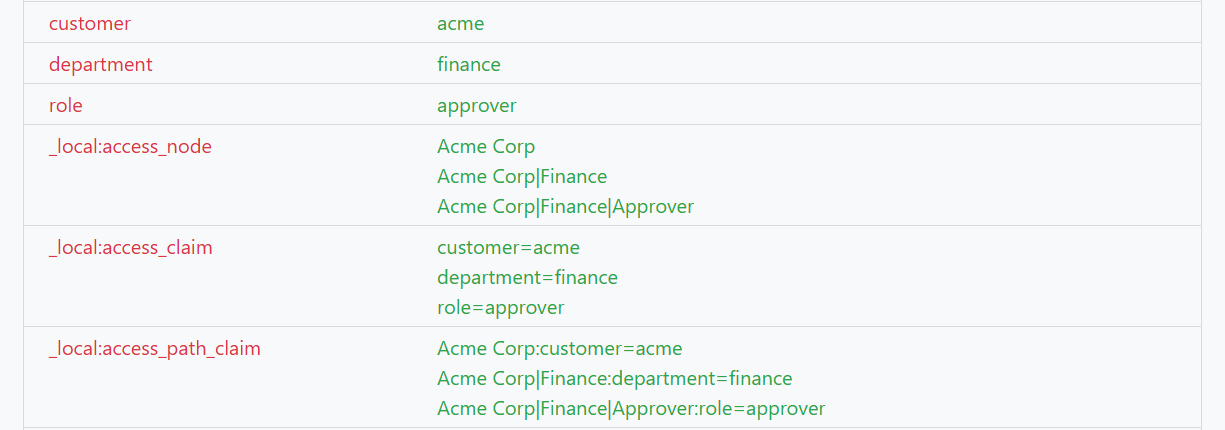

Input claims in a claim transform with local access structure claims and claims forwarded to the application

If Forward access structure claims to applications is enabled, the access claims are also forwarded to the claim transforms and applications. In this case the customer=acme, department=finance and role=approver claim.

Memberships

Users are connected to an access structure through memberships. A user can be connected to multiple access structures through multiple memberships and multiple nodes within each structure.

A membership:

Applies to both internal users and external users
References one node in an access structure
Can optionally include a valid from and valid to time

Memberships are managed in the FoxIDs Control Client:

On the Internal Users page for internal users
On the External Users page for external users
On the Access Structures page for user-centric membership management

At login, FoxIDs resolves the user's memberships and walks the node hierarchy from the assigned node to the root node.

The resolved result includes:

Effective node paths
Effective claims from the hierarchy
Path-qualified claims

These values are made available before normal claim transforms execute, which means they can be used directly in existing claim transform and authorisation flows.

Local claims

Access structure resolution emits fixed local claim types.

The following local claims are available in claim transforms:

_local:access_node
_local:access_claim
_local:access_path_claim

This avoids dynamic claim types while still carrying hierarchy context in the claim values.

Forward claims to applications

Each access structure includes the Forward access structure claims to applications setting, defaulting to enabled.

If enabled, resolved access claims are forwarded to applications.

If disabled, the resolved access is still available locally inside claim transforms, but the resolved access claims are not forwarded to applications.

Typical use cases

Model customer-specific access for internal and external users
Assign users to departments and roles through memberships
Resolve approver or reader responsibilities from a hierarchy
Forward resolved access claims to applications when needed
