Connect IdentityServer with OpenID Connect authentication method

FoxIDs can be connected to an IdentityServer with OpenID Connect and thereby authenticating end users in an IdentityServer.

It is possible to connect an IdentityServer client and read claims from the ID token or select a more complex case where claims is read form the access token.

The sample IdentityServerOidcOpSample is configured in the FoxIDs test-corp with the authentication method name identityserver_oidc_op_sample.
You can test login (username alice and password alice) using the IdentityServerOidcOpSample and the AspNetCoreOidcAuthorizationCodeSample samples. By clicking OIDC IdentityServer Log in in the AspNetCoreOidcAuthorizationCodeSample application.
The IdentityServerOidcOpSample sample is configured with Implicit Flow to enable local testing, please use Authorization Code Flow in production.

Take a look at the IdentityServer sample configuration in FoxIDs Control: https://control.foxids.com/test-corp
Get read access with the user [email protected] and password TestAccess! then select the Production environment and the Authentication methods tab.

Configure IdentityServer client

This chapter describes how to configure a connection with OpenID Connect Authorization Code flow and PKCE, which is the recommended OpenID Connect flow.

1 - Start by creating an OpenID Connect authentication method client in FoxIDs Control Client

  1. Add the name

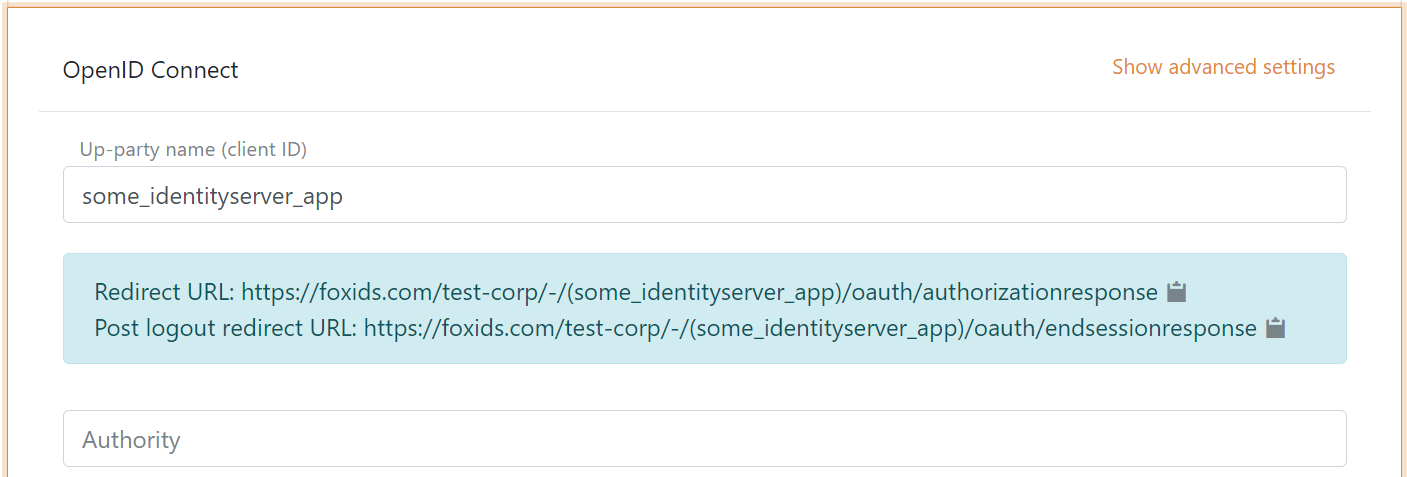

Read the redirect URLs

It is now possible to read the Redirect URL and Post logout redirect URL.

2 - Then go to the IdentityServer configuration and create the client

yield return new Client
{
    ClientId = "some_identityserver_app",

    AllowedGrantTypes = GrantTypes.Code,
    RequirePkce = true,
    ClientSecrets =
    {
        new Secret("BpCbINKwxELM ... eVpMClM84Rr0".Sha256())
    },

    AlwaysIncludeUserClaimsInIdToken = true,

    RedirectUris = { "https://foxids.com/test-corp/-/(some_identityserver_app)/oauth/authorizationresponse" },
    PostLogoutRedirectUris = { "https://foxids.com/test-corp/-/(some_identityserver_app)/oauth/endsessionresponse" },

    AllowedScopes = new List<string>
    {
        IdentityServerConstants.StandardScopes.OpenId,
        IdentityServerConstants.StandardScopes.Profile,
        IdentityServerConstants.StandardScopes.Email,
    }
};

Code from the IdentityServerOidcOpSample sample configuration.

3 - Go back to the FoxIDs authentication method client in FoxIDs Control Client

  1. Add the IdentityServer's authority
  2. Add the profile and email scopes (possible other or more scopes)
  3. Add the IdentityServer client's client secret value as the client secret
  4. Select show advanced settings
  5. Select use claims from ID token
  6. Add the claims which will be transferred from the authentication method to the application registrations. E.g., email, email_verified, name, given_name, family_name, role and possible the access_token claim to transfer the IdentityServer access token
  7. Click create

That's it, you are done.

The new authentication method can now be selected as an allowed authentication method in a application registration.
The application registration can read the claims from the authentication method. It is possible to add the access_token claim to include the IdentityServer access token as a claim in the issued access token.

Read claims from access token

If you want to read claims from the access token you need to add an API resource and API scope. And let the client use the new scope.

1 - In the IdentityServer configuration

public IEnumerable<ApiResource> GetApiResources()
{
    yield return new ApiResource("some.api", "Some API")
    {
        UserClaims = new[] { "email", "email_verified", "family_name", "given_name", "name", "role" },

        Scopes = new List<string>
        {
            "some.api.access"
        }
    };
}

public IEnumerable<ApiScope> GetApiScopes()
{
    yield return new ApiScope("some.api.access", "Some API scope");
}

You can remove the AlwaysIncludeUserClaimsInIdToken = true from the client.

Code from the IdentityServerOidcOpSample sample configuration.

2 - Then go to FoxIDs Control Client

  1. Add the API scope some.api.access as a scope in the FoxIDs authentication method client
  2. Read claims from access token by not selecting to use claims from ID token
