External Password API

Use an external password API when you need FoxIDs to (a) delegate password validation to an existing password store or policy engine, (b) notify an external system about password changes performed in FoxIDs, or (c) handle both scenarios.

You implement the external password API and configure FoxIDs to call it.

  • Validation API: validates a password (e.g., during login or before accepting a password change) and can optionally notify you of a password change in the same call.
  • Notification API: notifies about a password change after the password has passed all policy checks. It is only invoked for new password events (state 200).

If the built-in password policy rejects the password, the external password API is not called. The external password API's notification method is only called if the password has passed all configured policy checks and only when the password state is 200 (new password).

If you require both validation and change notification, and both can be handled by the same system, implement only the validation API. When you receive a validation request where the password is accepted, perform your notification logic internally. Implement both endpoints only if you must call two different backend systems.

External password API can be configured as password check for internal users.

Implement API

You must implement a simple API that FoxIDs calls for validation / notification requests (see sample).

The API has a base URL; functionality is grouped into folders: the validation folder (validate password) and the notification folder (notify about password changes).

If the base URL is https://somewhere.org/mystore,

  • the validation endpoint is: https://somewhere.org/mystore/validation
  • and the notification endpoint is: https://somewhere.org/mystore/notification.

FoxIDs Cloud calls your API from IP 57.128.60.142.
IP(s) can change or be expanded.

The request and response are the same for both validation and notification methods. The validation method has an additional error case returned if the password is not accepted.

Request

Secured with HTTP Basic authentication: username external_password, password is the configured secret.

The call is HTTP POST with a JSON body.

Fields:

  • email / phone / username (optional – at least one must be present)
  • password (required)
  • state (required) – see password state

This is a request JSON body with only the email as a user identifier (validating an existing password during login):

{
  "email": "user1@somewhere.org",
  "password": "testpass1",
  "state": 100
}

This is a request JSON body with all three user identifiers (validating a new password being set or changed):

{
  "email": "user1@somewhere.org",
  "phone": "+4011223344",
  "username": "user1",
  "password": "testpass1",
  "state": 200
}

The user identifiers are optional, but at least one must be present. The password and state are required.

Password state

The password state makes it possible to apply different logic depending on context.

Values:

  • 100 is current password, which is sent when a user enters an existing password during login.
  • 200 is new password, which is sent when a user sets or changes to a new password (user creation, password change or reset).

Response

Success
On success the API should return HTTP status code 200.

Error
The API must return HTTP status code 401 (Unauthorized) and an error (required) if the Basic authentication is rejected. Optionally add an error description in ErrorMessage.

{
  "error": "invalid_api_id_secret",
  "ErrorMessage": "Invalid API ID or secret"
}

Error - only for the validation method
The API must return HTTP status code 400 or 403 and an error (required) if the password (considering its state) is not accepted. Optionally add an error description in ErrorMessage.

{
  "error": "password_not_accepted",
  "ErrorMessage": "Password not accepted."
}

If other errors occur, the API should return HTTP status code 500 or another appropriate error code.
It is recommended to add a technical error message in ErrorMessage for diagnostics (it is only logged; never shown to the end user).

API Sample

The sample ExternalPasswordApiSample shows how to implement the API in ASP.NET Core.

Use the Postman collection external-password-api.postman_collection.json to call and test your API with Postman.

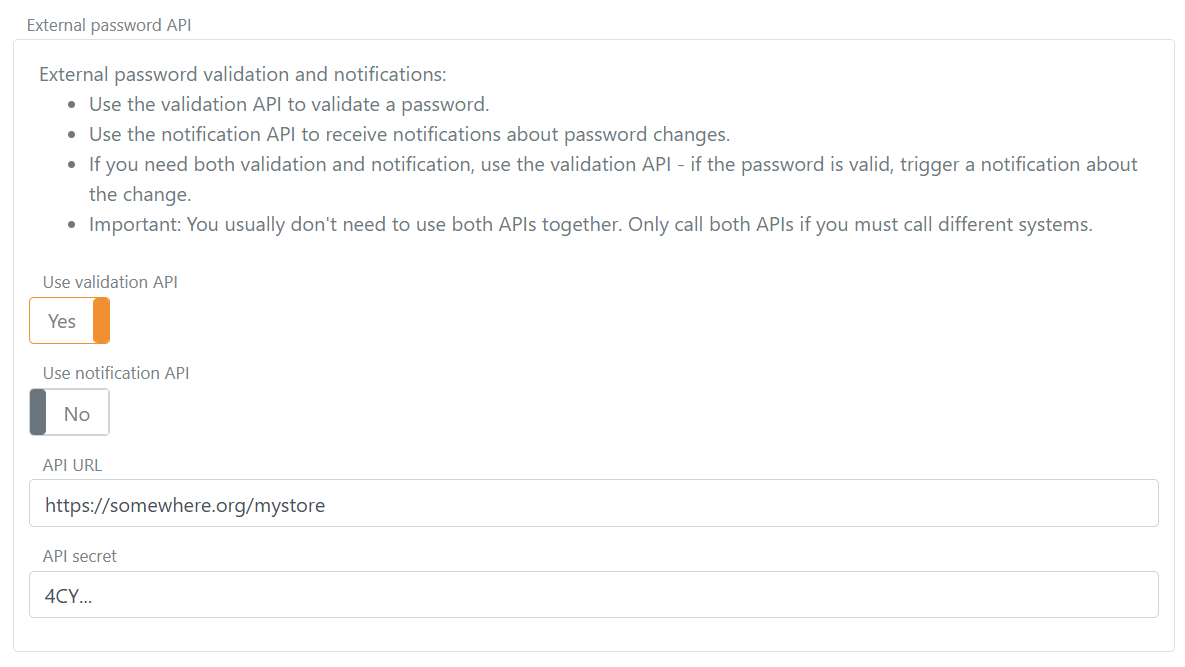

Configure

The external password API is configured in the environment settings in the FoxIDs Control Client.

  1. Select the Settings tab
  2. And subsequently select the Environment tab
  3. Find the External password API section
  4. Select Use validation API or Use notification API, or in rare cases both.
  5. Add the base API URL without the validation and notification folders in API URL
  6. Add the API secret Configure the external password API
  7. Click Update
