OpenID Connect application registration

FoxIDs OpenID Connect application registration enable you to connect an OpenID Connect based application.

FoxIDs OpenID Connect application registration

Your application become a Relying Party (RP) and FoxIDs acts as an OpenID Provider (OP).

FoxIDs support OpenID Connect Discovery where your application can discover the OpenID Provider.

FoxIDs support OpenID Connect authentication (login), RP-initiated logout and front-channel logout. A session is established when the user authenticates and the session id is included in the id token. The session is invalidated on logout.
FoxIDs can show a logout confirmation dialog depending on configuration and rather an ID token is included in the logout request or not.

Default both id token and access token are issued with the client's client id as the audience. The default resource can be removed from the access token in FoxIDs Control. Access tokens can be issued with a list of audiences and thereby be issued to multiple APIs defined in FoxIDs as OAuth 2.0 resources.
The application can then call an API securing the call with the access token using the The OAuth 2.0 Authorization Framework: Bearer Token Usage.

FoxIDs support both client secret and Proof Key for Code Exchange (PKCE), and default require PKCE. If a client is configured with both PKCE and secret/key they will both be validated. PKCE and client secret/key is not validated in implicit flow.

The default client authentication method is client secret post and can be changed to client secret basic or private key JWT. Client authentication method none is supported with PKCE.

There can be configured a maximum of 10 secrets and 4 keys per client.

FoxIDs support the OpenID Connect UserInfo endpoint.

How to guides:

  • Connect two FoxIDs environments in the same or different tenants with OpenID Connect

It is recommended to use OpenID Connect Authorization Code flow with PKCE, because it is considered a secure flow.

Require multi-factor authentication (MFA)

The OpenID Connect client can require multi-factor authentication by specifying the urn:foxids:mfa value in the AcrValues parameter.

The AcrValues parameter can be set in the OnRedirectToIdentityProvider event in Startup.cs:

options.Events.OnRedirectToIdentityProvider = (context) =>
{
    // To require MFA
    context.ProtocolMessage.AcrValues = "urn:foxids:mfa";
    return Task.FromResult(string.Empty);
};

See more code in the AspNetCoreOidcAuthorizationCodeSample and Startup.cs line 141.

Configuration

How to configure your application as a OpenID Connect application registration Relaying Party (RP) / client.

The clients FoxIDs discovery document is https://foxids.com/tenant-x/environment-y/application-client1/.well-known/openid-configuration
if the client is configured in tenant tenant-x and environment environment-y with the application registration client name application-client1.

A application registration client can possibly support login through multiple authentication methods by adding the authentication method name to the URL.
An authentication method name e.g. login can possible be added to the discovery URL like this https://foxids.com/tenant-x/environment-y/application-client1(login)/.well-known/openid-configuration

During RP-initiated logout the authentication method name can be omitted in the URL if the ID Token is provided in the request.

Configure Authorization Code Flow for a confidential client

A confidential client could be a web application where the security is handled by the webserver which also stores the client secret.

  • Specify client name in application registration name.
  • Select allowed authentication methods.
  • Specify redirect URIs.
  • Specify post logout redirect URI.
  • Select code as response type or possible but not recommended code token or code token id_token.
  • It is not required to use PKCE in a confidential client but recommended to mitigate replay attacks.
  • Specify a secret.

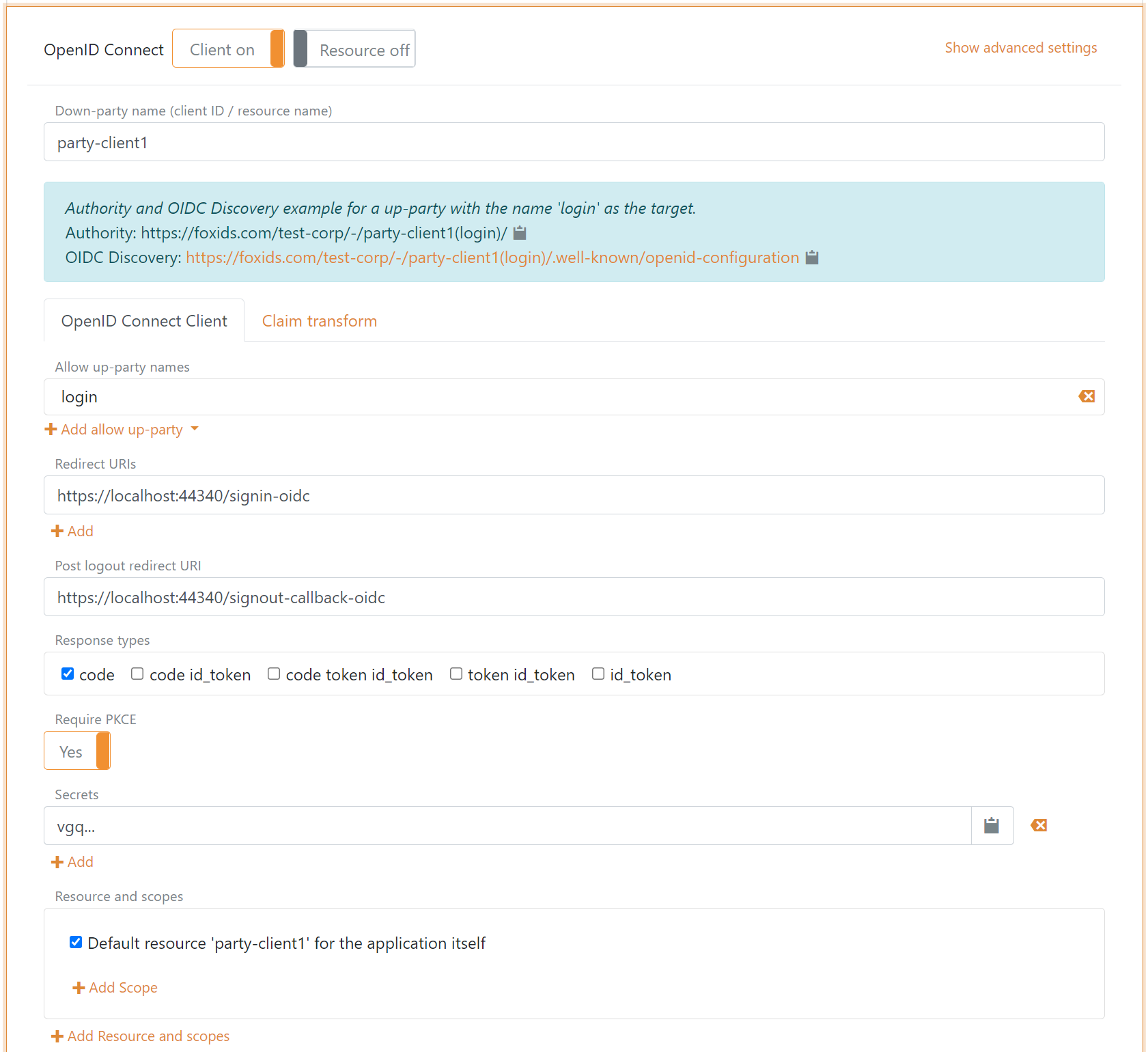

Configure Authorization Code Flow

Configure Authorization Code Flow for a public client

A public client could be a browser-based riches client, Blazor client or mobile app. The application should use PKCE and not a client secret.

  • Specify client name in application registration name.
  • Select allowed authentication methods.
  • Specify redirect URIs.
  • Specify post logout redirect URI.
  • Select code as response type.
  • Use PKCE, default enabled.

Click "Show advanced" to configure allowed CORS origins.

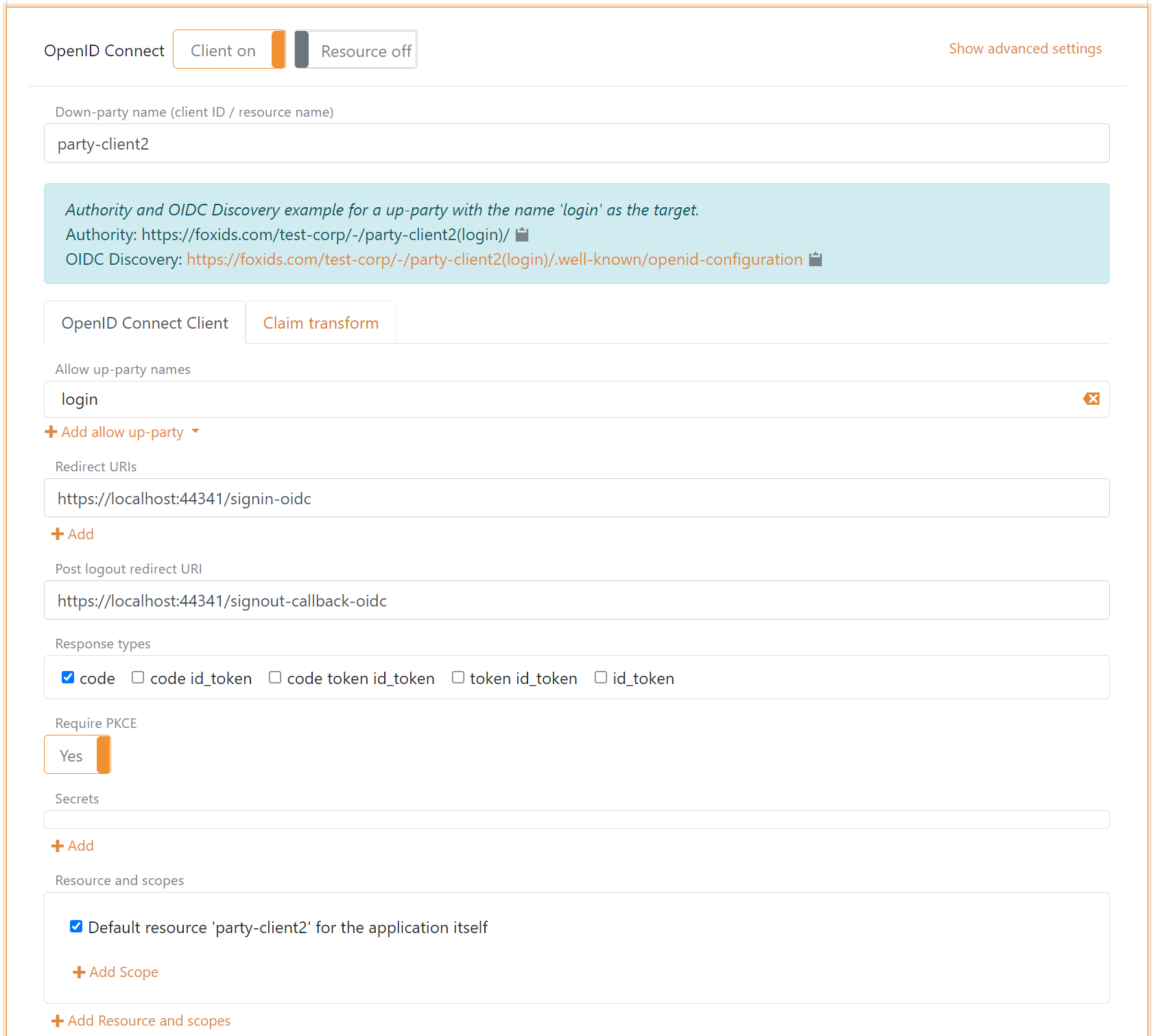

Configure Authorization Code Flow with PKCE

Configure Implicit Code Flow for a public client

A public client could be a web application where the security is handled by the webserver or a browser-based riches client. The application neither use PKCE or client secret.
It is not recommended to use Implicit Code Flow because it is insecure.

  • Specify client name in application registration name.
  • Select allowed authentication methods.
  • Specify redirect URIs.
  • Specify post logout redirect URI.
  • Select token id_token as response type or possible only token.
  • Disable PKCE.
  • Do not specify a secret.

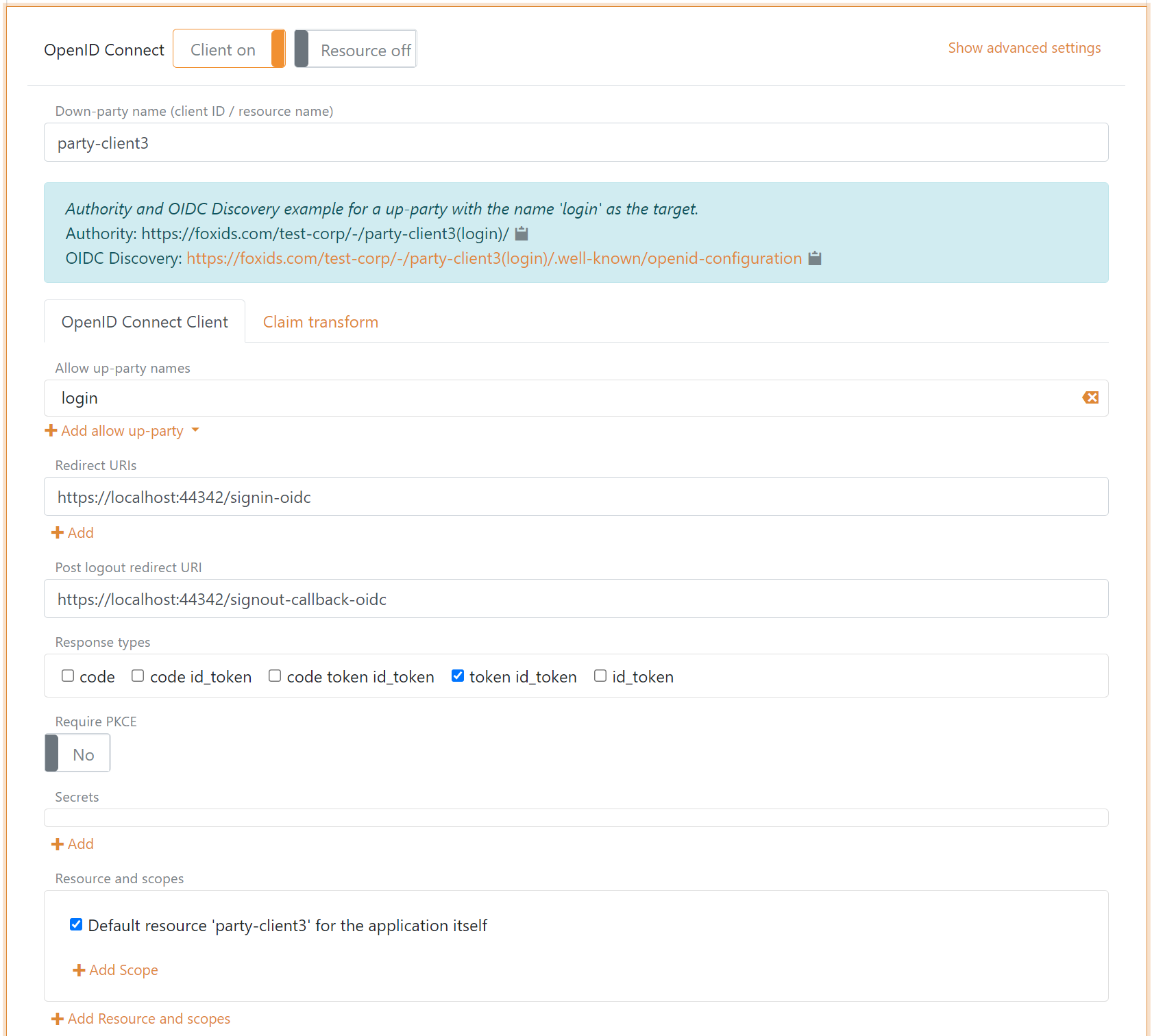

Configure Implicit Code Flow with PKCE

Client and API

It is possible to configure both client and API (OAuth 2.0 resource) in the same OpenID Connect application registration configuration, where both the client and API is defined with the same name. Furthermore, it is possible to configure resource scopes for the API.

Client tap

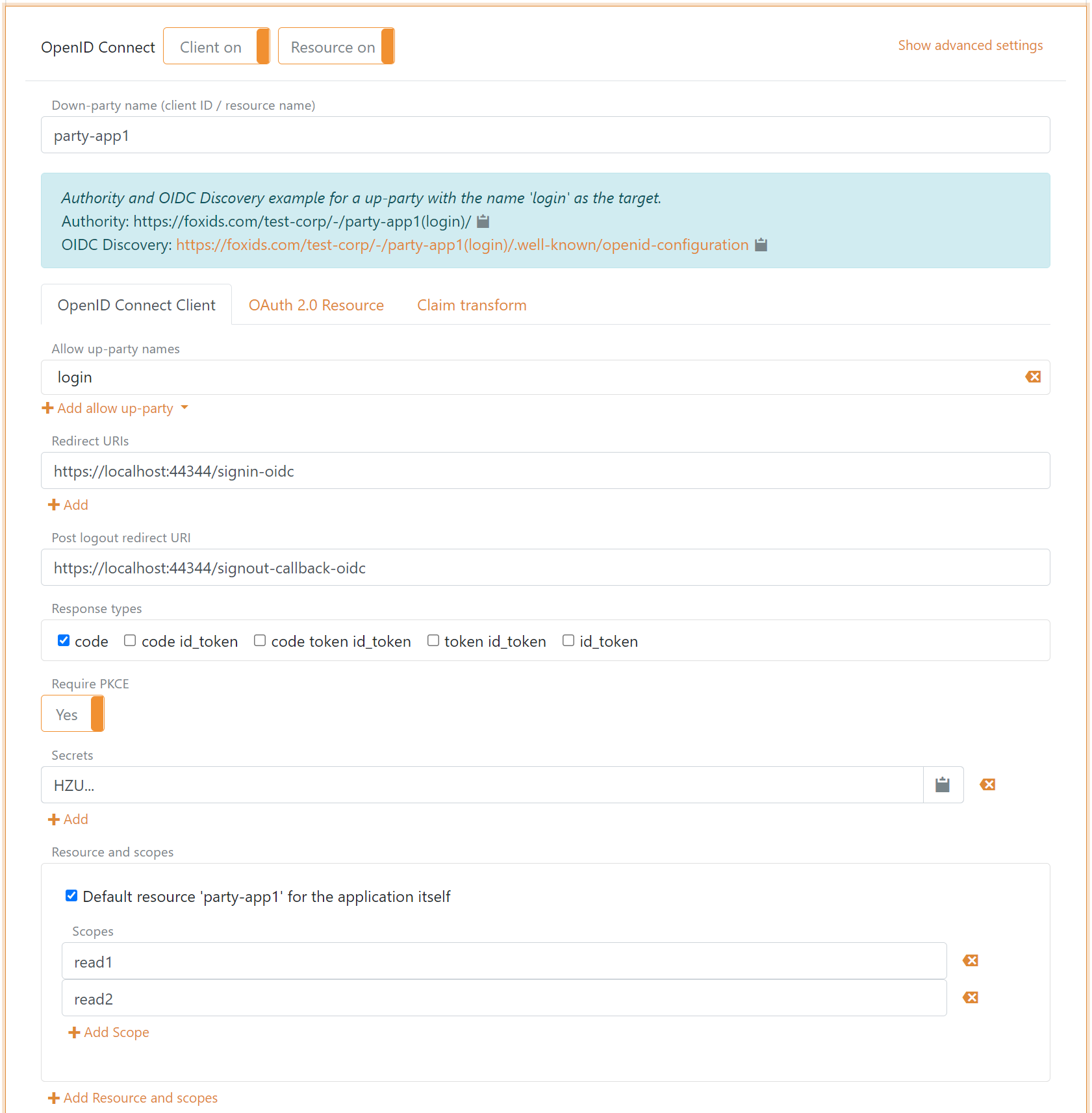

Configure Client and API - Client

Resource tab

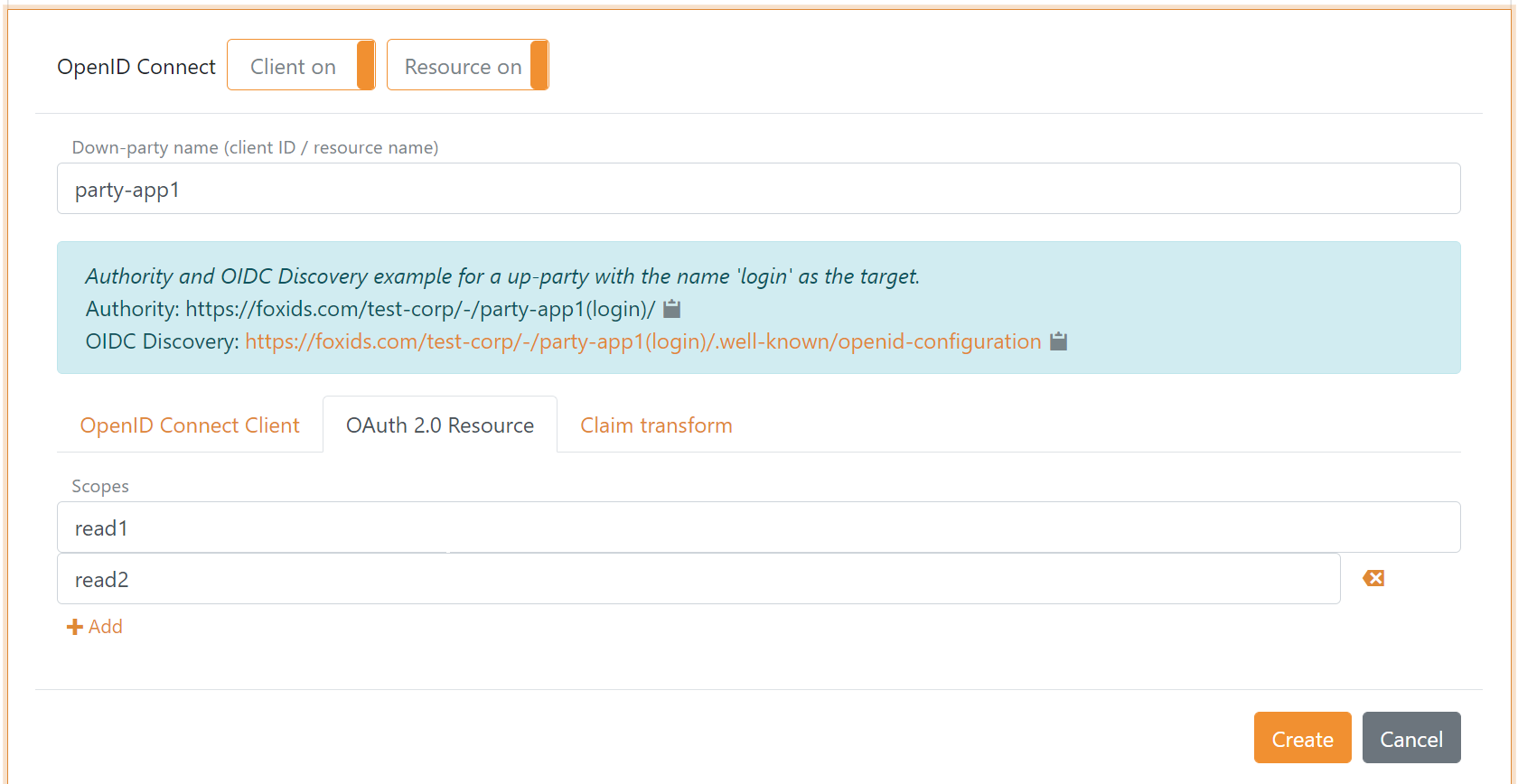

Configure Client and API - Resource

Resource and Scopes

An API is defined as a resource under which it is possible to define scopes. Such scopes are defined as the resource name dot scope e.g. application-api1.read1 or application-api1.read2.

In the client configuration tab, the scopes are defined underneath the resource name field.

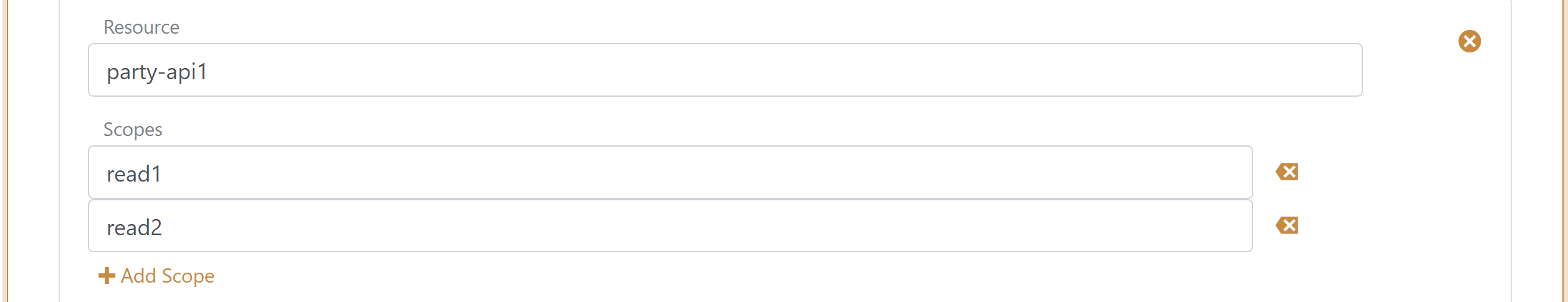

Resource and scopes - Client

In the resource configuration tab, the scopes are defined as a list of scope values.

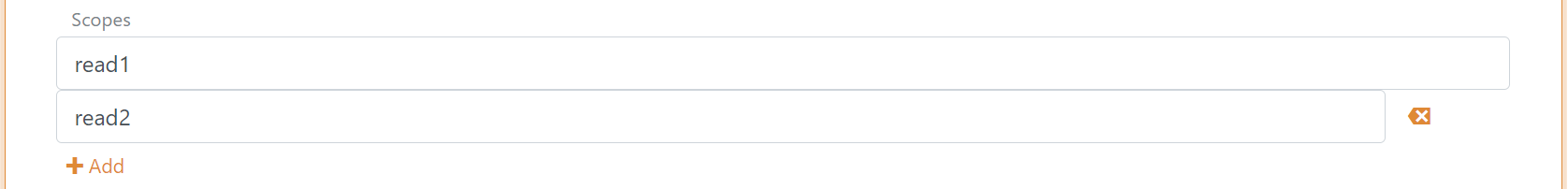

Resource and scopes - Resource

Scopes configured in the client is validated if the scopes exist on the API. If the client and API is configured in the same application registration configuration, scopes added to the client is automatically added to the resource.

Scopes

The scopes can be configured in the client configuration tab. It is possible to define a set of claims which should be issued for at scope as voluntary claims.

Change the claims the application registration pass on with claim transforms.

A set of default scopes is added to the client configuration, which subsequently can be changed or deleted.

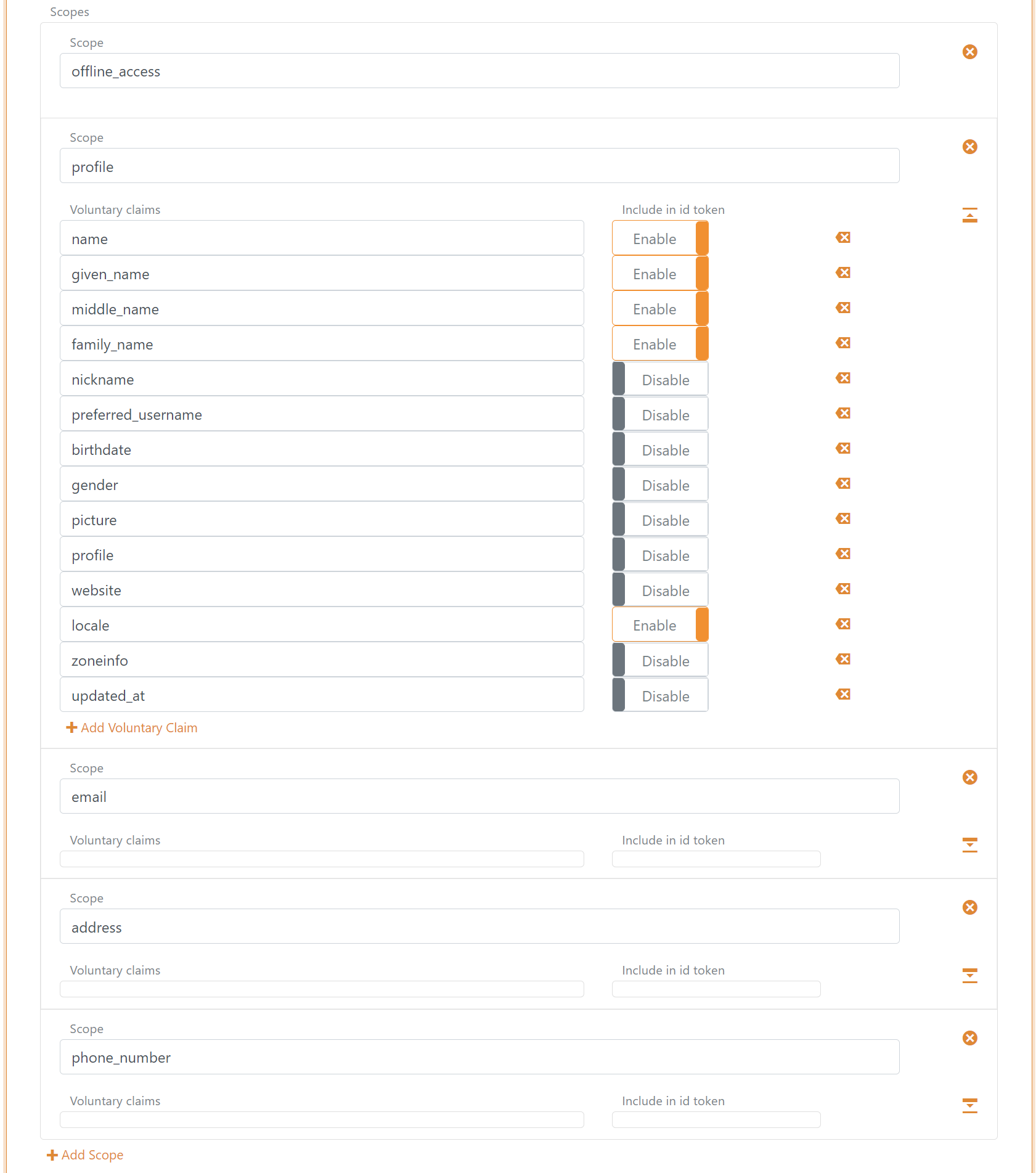

Default scopes

Token lifetime

The token lifetime is configured for the ID token, access token and refresh token.

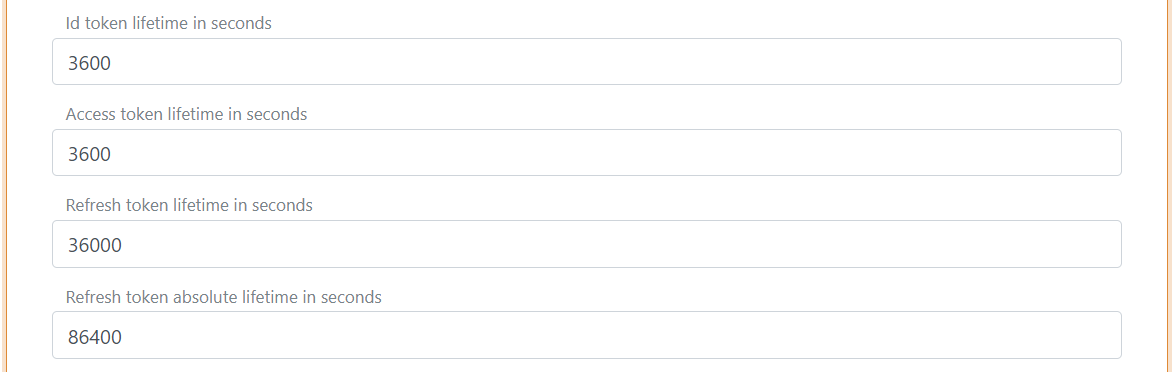

Token lifetime

In this example each refresh token is valid for 36,000 seconds. The application can continue to refresh the session with refresh tokens until the absolute lifetime of 86,400 seconds is reached.
