Getting started

The get started guide is mend to get you started using FoxIDs and to help you configure the first application as a down-party in FoxIDs.

1) Get access to FoxIDs tenant

FoxIDs is available at FoxIDs.com or you can deploy FoxIDs in a Microsoft Azure tenant as your own private cloud.
The only different is how you get access to the tenant, from there on the rest is the same.

FoxIDs.com

FoxIDs.com is deployed in Europe in Microsoft Azure Holland as an Identity Services (IDS) also called Identity as a Service (IDaaS).

  1. Register at FoxIDs.com, where you get access to your one FoxIDs tenant. The tenant will hold your organizations entire security service.
    You can create more admin users in your one new tenants master track.

FoxIDs Private Cloud

FoxIDs is open source and you are free to deploy FoxIDs as your own private cloud in a Microsoft Azure tenant.

  1. Deploy FoxIDs in a Microsoft Azure tenant.
  2. After successfully deployment, login to the master tenant in FoxIDs Control Client.
    You can create more admin users in the master tenant. But you should normally not add applications in the master tenant.
  3. Create the tenant for your organizations security service.
    You can create more admin users in the new tenants master track.

2) First login

Every time you log into your FoxIDs tenant you are presented with a list of the tracks in the tenant.

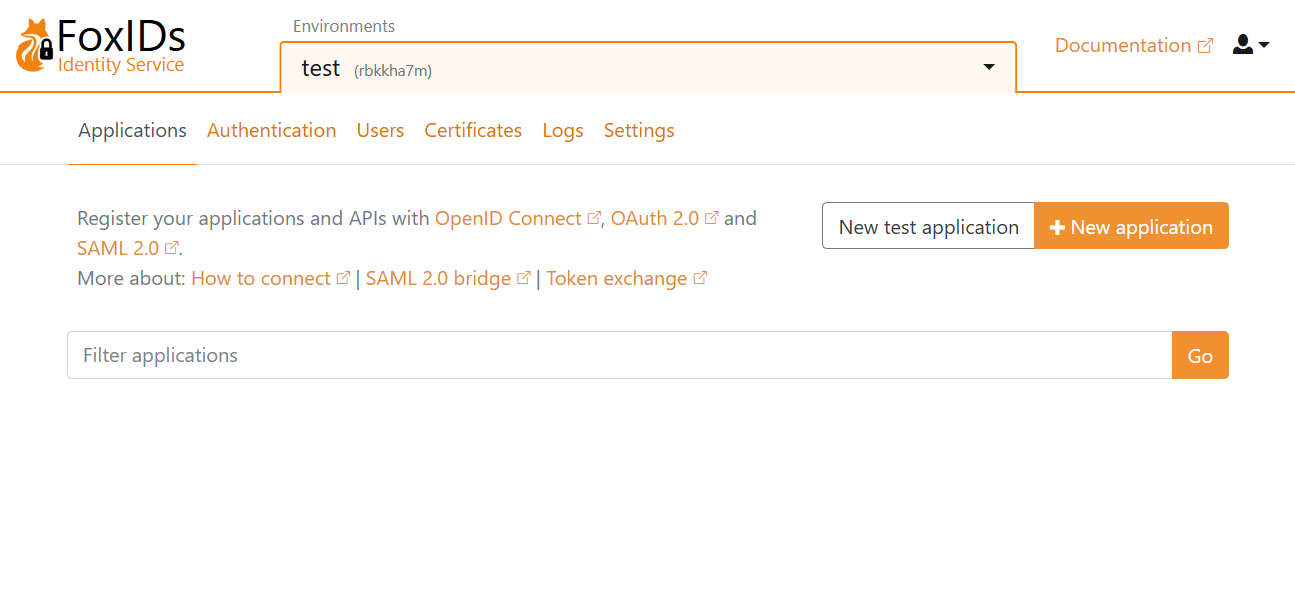

FoxIDs first login

The default tracks in a tenant:

  • master is the track responsible for access to the tenant and the subsequently tracks.
    The Control Client and Control API is configured in the master track and admin users is added to the master track. You should normally not add applications in the master track.
  • - (dash) is the production track holding your organizations production security service
  • test is a track meant for testing. You probably need more tracks for dev, test QA etc.

You can add and delete tracks including deleting default - (dash) and test tasks.

3) Run the first application

You can start by configuring the first application in the test track, add test user(s) and do a login.

You can either configure your own application or configure the samples and run a sample application.

Add test user(s)

Select the test track and go to the Users tab to create a test user(s).

Test user

Then click Create User and thereafter click Create.

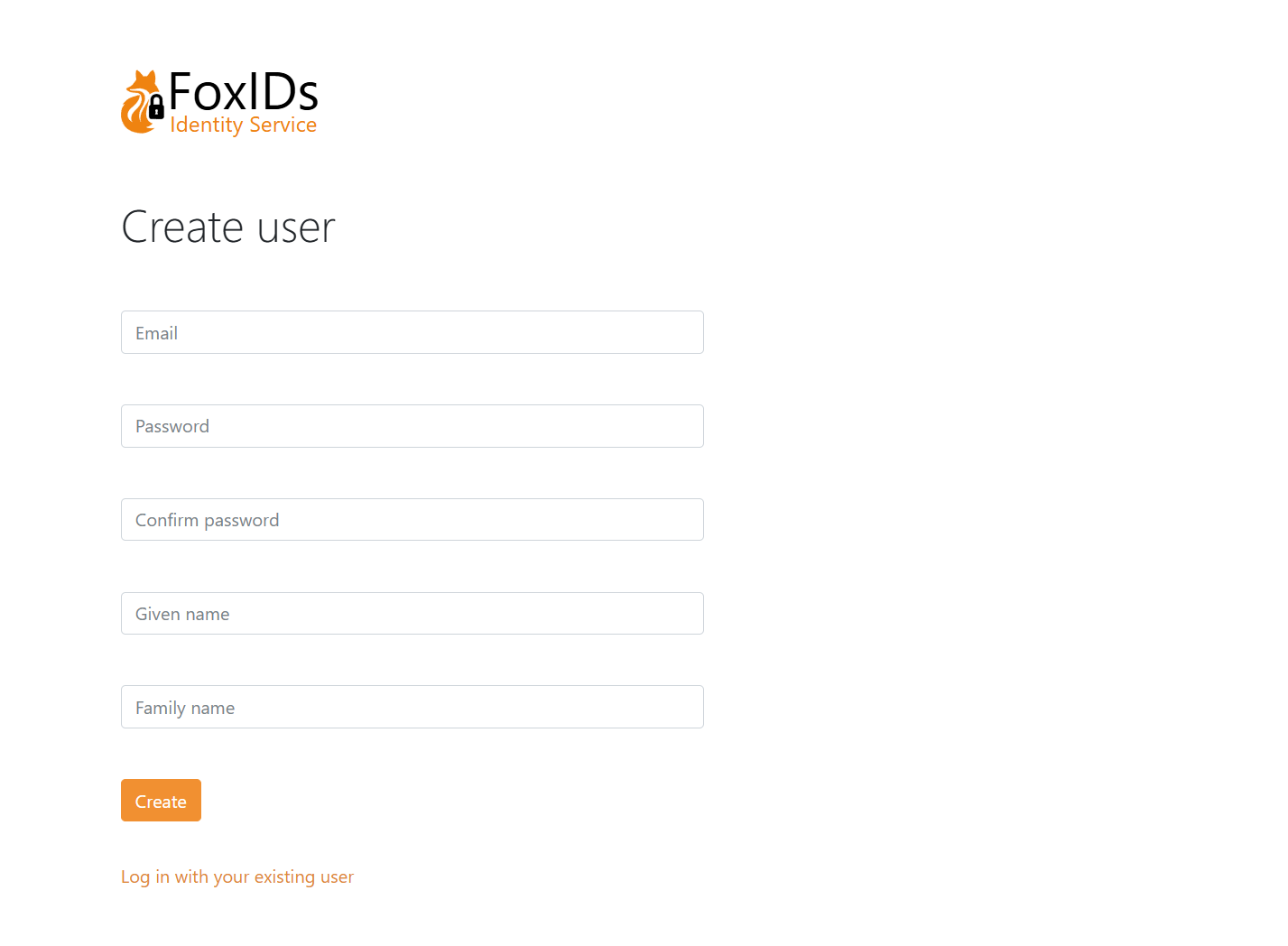

Create test user

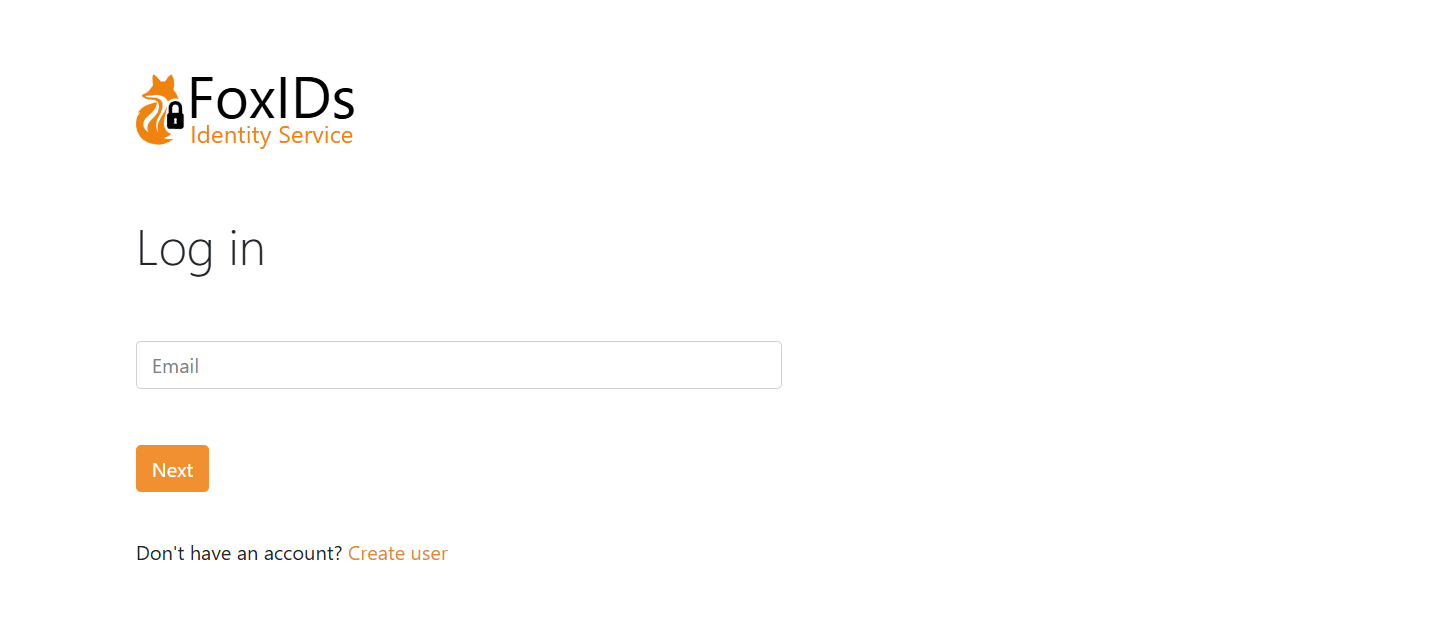

Default login dialog

In the test track and go to the Parties tab and Up-parties subtab.

Each track contains a default login up-party which is responsible for handling the login dialog doing login and logout.

Login up-party

The login up-party with the default name login is selected in the down-party to enable login with users in the track.

It is possible to add more up-parties to federate with external IdPs (identity providers) using OpenID Connect and SAML 2.0. These also need to be configured in the down-party to be enabled.

Configure your own application

In the test track go to the Parties tab and Down-parties subtab to configure your application.

Web based applications (client / relaying party) can be configured with OpenID Connect and SAML 2.0. APIs (resource) can be configured with OAuth 2.0.

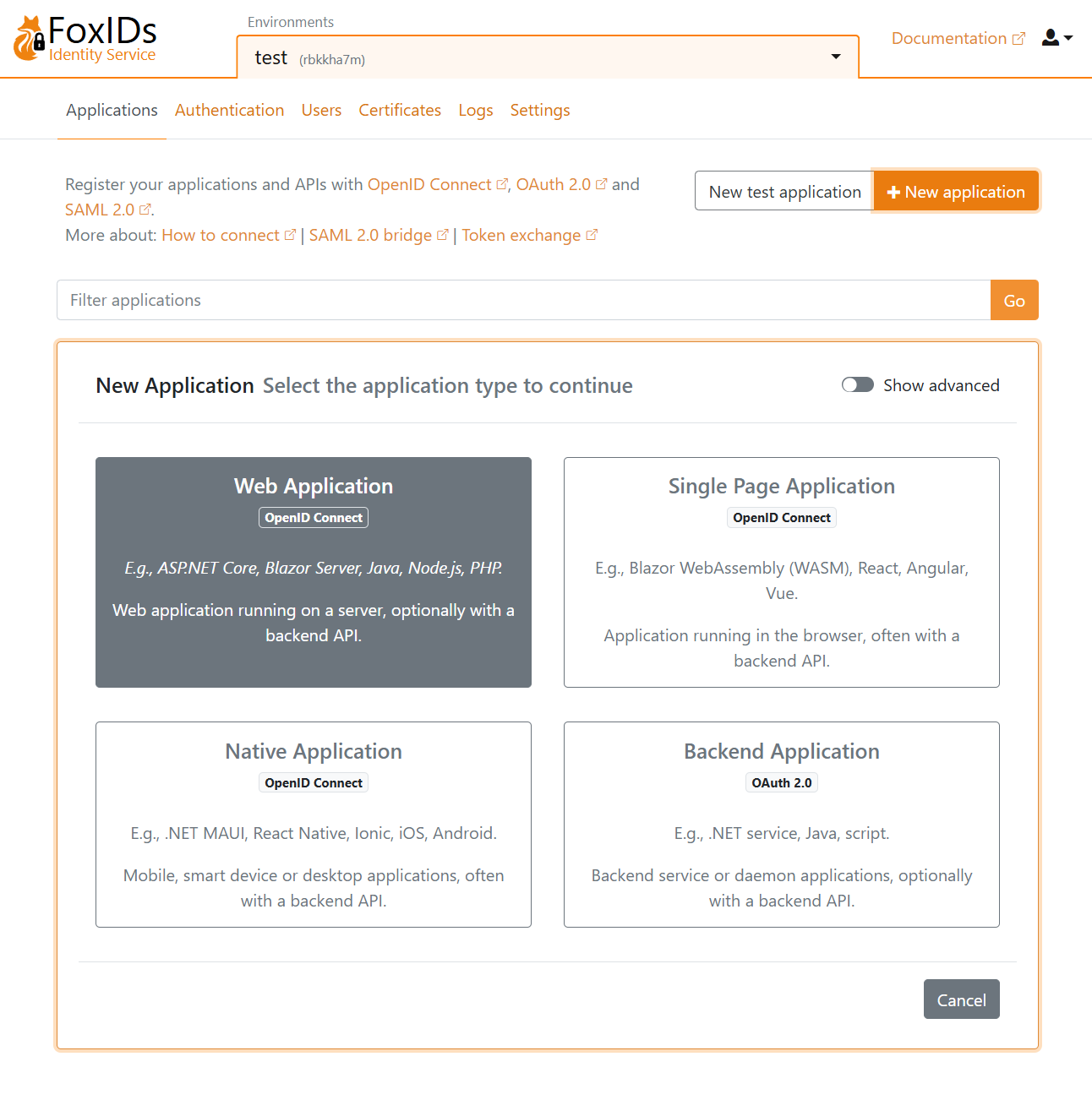

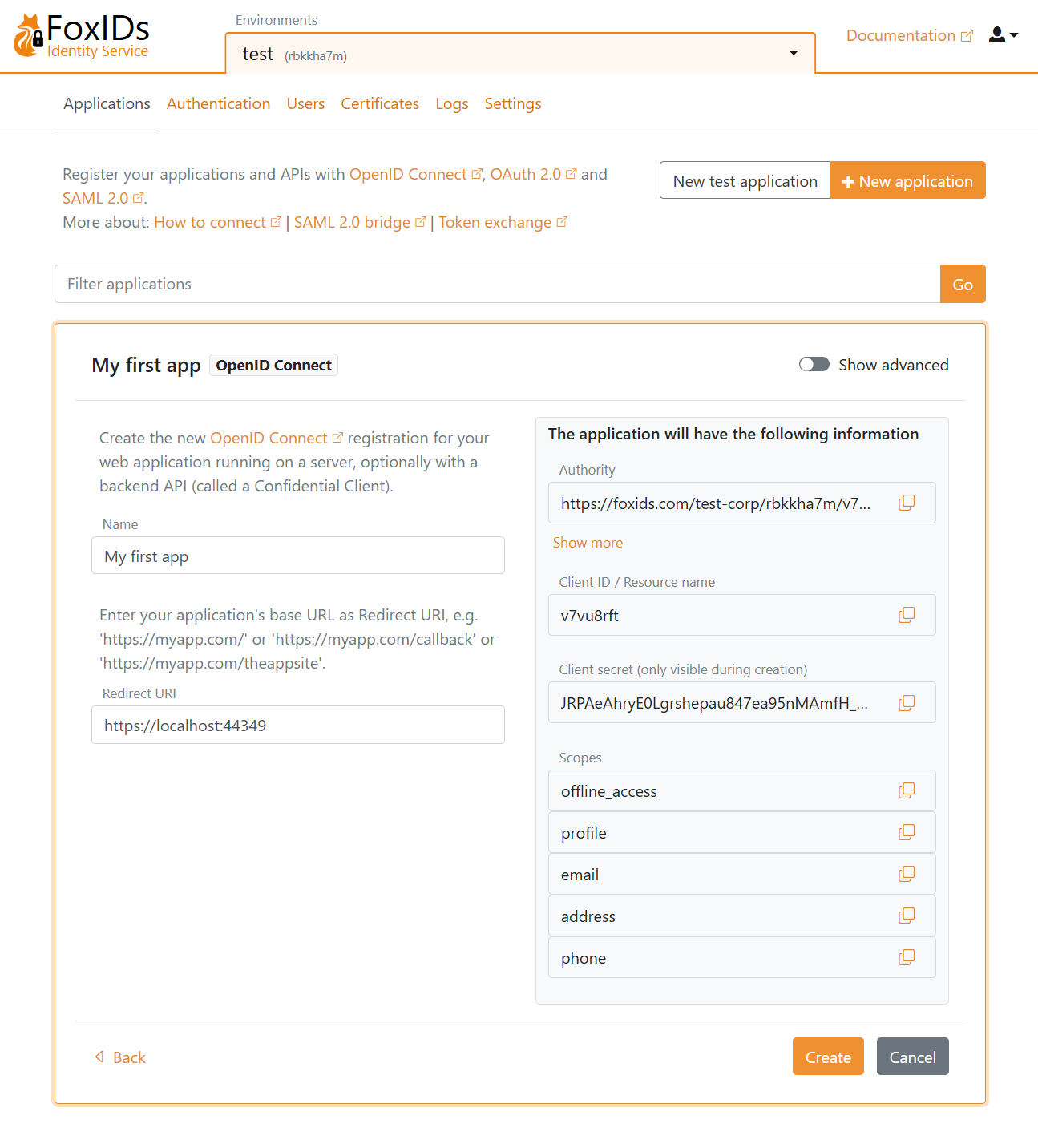

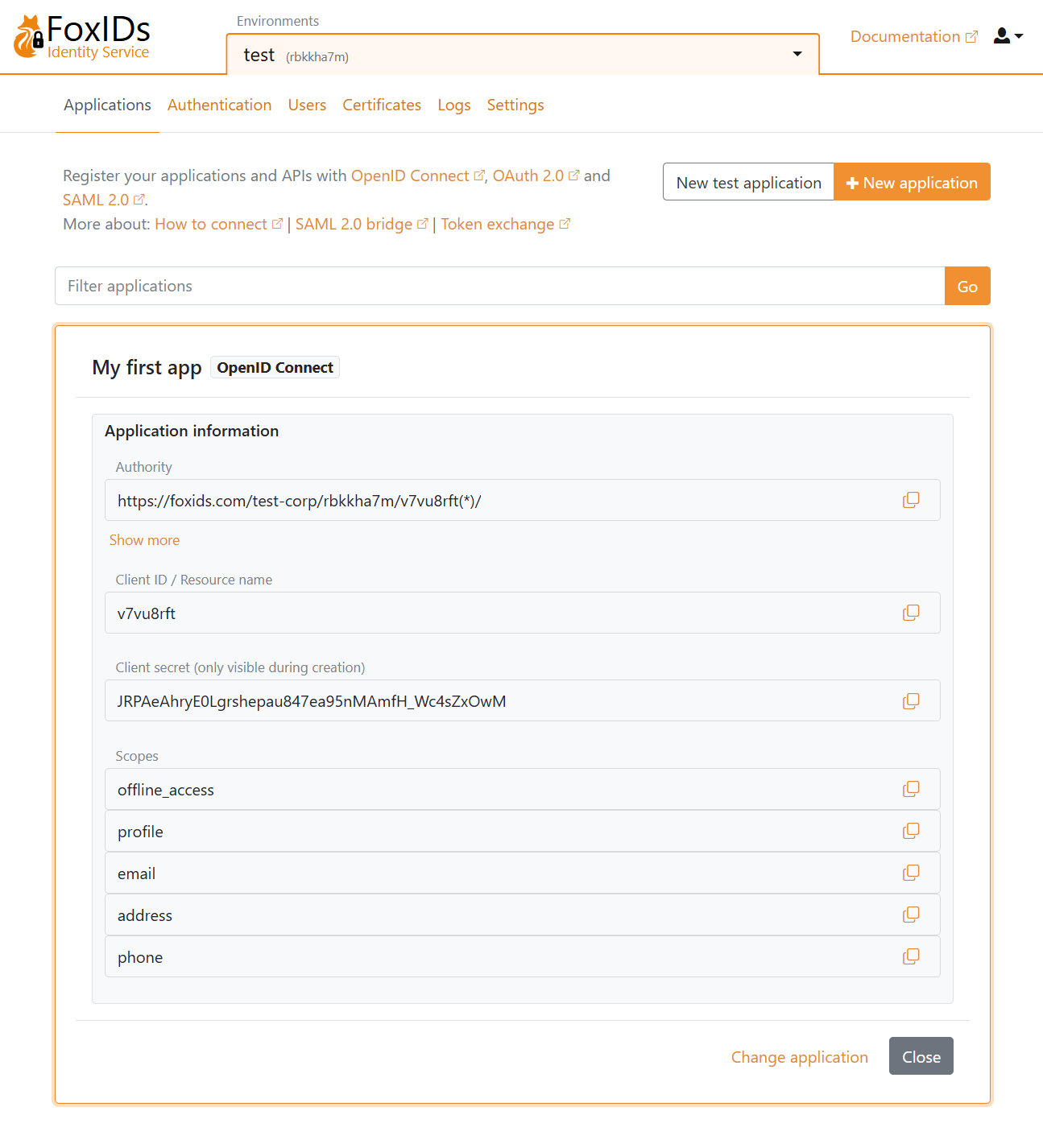

Down-party application

You can e.g., configure your application as confidential client with OpenID Connect Authorization Code Flow.

Sample application

The sample applications can be found in the samples repository.

The samples are in a Visual Studio solution and can eminently run using the pre-configured test tenant at FoxIDs.com.

The samples contains a configuration seed tool which is used to configure all the samples in e.g., the test track.
The seed tool is given access by configuring it in the master track and the tool has thereafter access to add the configuration in a track in the tenant.

After successfully configuring the samples in the test track you can e.g., select to test with the ASP.NET OIDC Authorization Code sample - AspNetCoreOidcAuthorizationCodeSample.
You need to update the tenant and track configuration in the appsettings.json config file and thereafter the sample should work.
