Connect to Facebook with OpenID Connect

FoxIDs can be connected to Facebook with OpenID Connect and authenticate users with Facebook login or Facebook Limited login.

You can test the Facebook login with the online web app sample (sample docs) by clicking Log in and then Facebook.
Take a look at the Facebook sample configuration in FoxIDs Control: https://control.foxids.com/test-corp
Get read access with the user reader@foxids.com and password TestAccess! then select the Production environment and the Authentication tab.

Configure Facebook

This chapter describes how to configure a connection with OpenID Connect Authorization Code flow and read the users claims from the ID token.

1 - Start by creating an OpenID Connect authentication method in FoxIDs Control Client

  1. Navigate to the Authentication tab

  2. Click New authentication

  3. Select OpenID Provider

  4. Add the Name e.g. Facebook

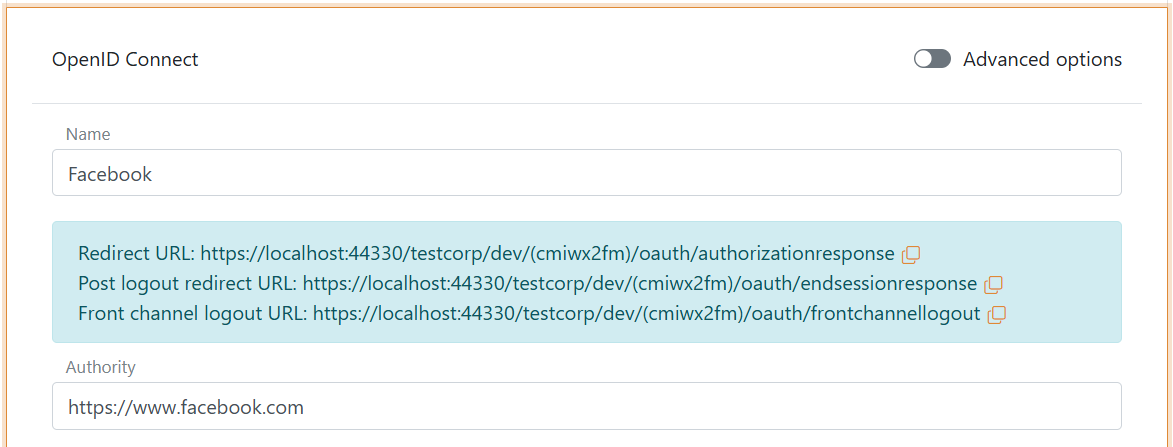

  5. Add the Facebook Authority, you can either select to use Facebook login with the https://www.facebook.com/ authority or Facebook Limited login with the https://limited.facebook.com/ authority Read the redirect URLs

  6. Read the Redirect URL and save it for later

2 - Then go to the Facebook developer dashboard and create the a new App

  1. Navigate to My Apps in the top right corner

  2. Click Create App

  3. Select Authenticate and request data from users with Facebook Login

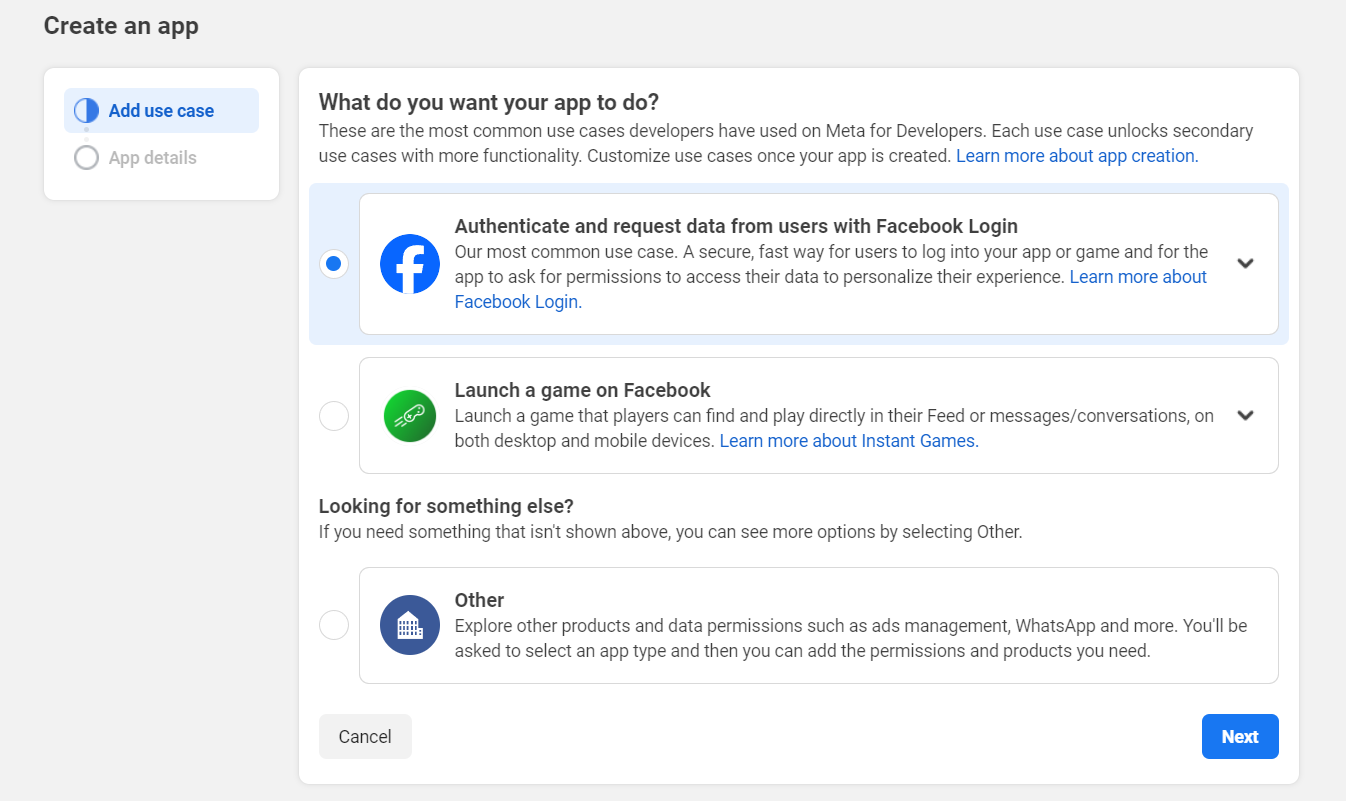

  4. Click Next Select login on Facebook

  5. Probably select No, I'm not building a game

  6. Click on Next

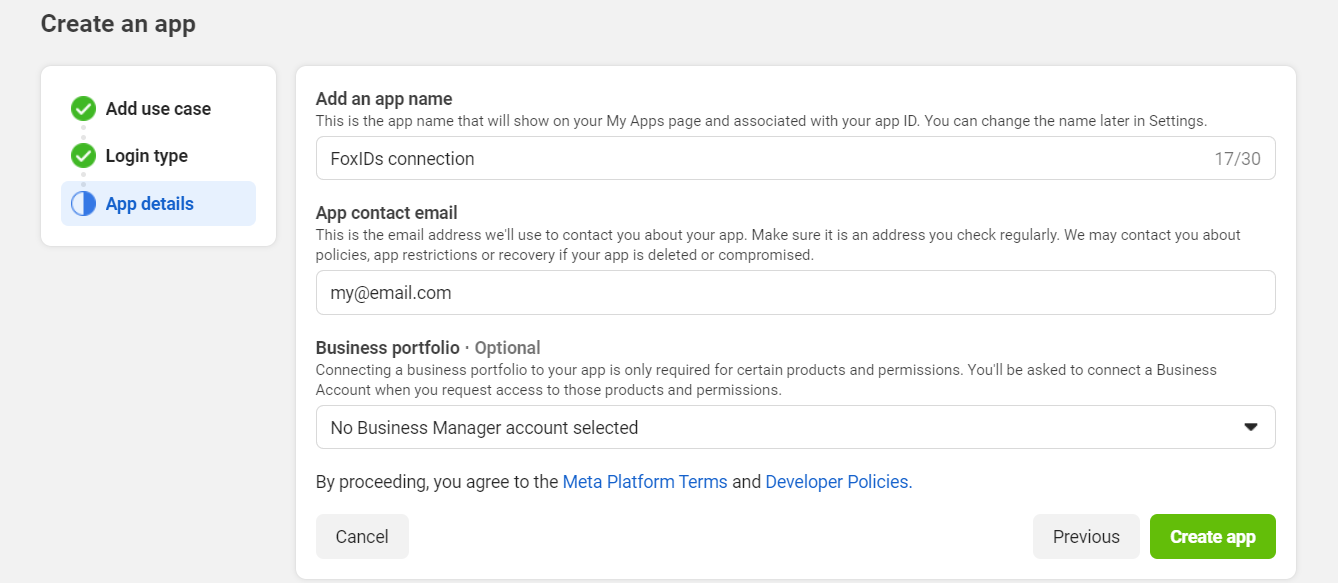

  7. Fill in the required details App details on Facebook

  8. Click on Create app

  9. Enter your Facebook password and the app is created

  10. Click Customize adding a Facebook Login button

  11. Click Go to settings

  12. Add the FoxIDs Redirect URL from before in the Valid OAuth Redirect URIs field Rediredt URL on Facebook

  13. Click Save changes in the bottom right corner

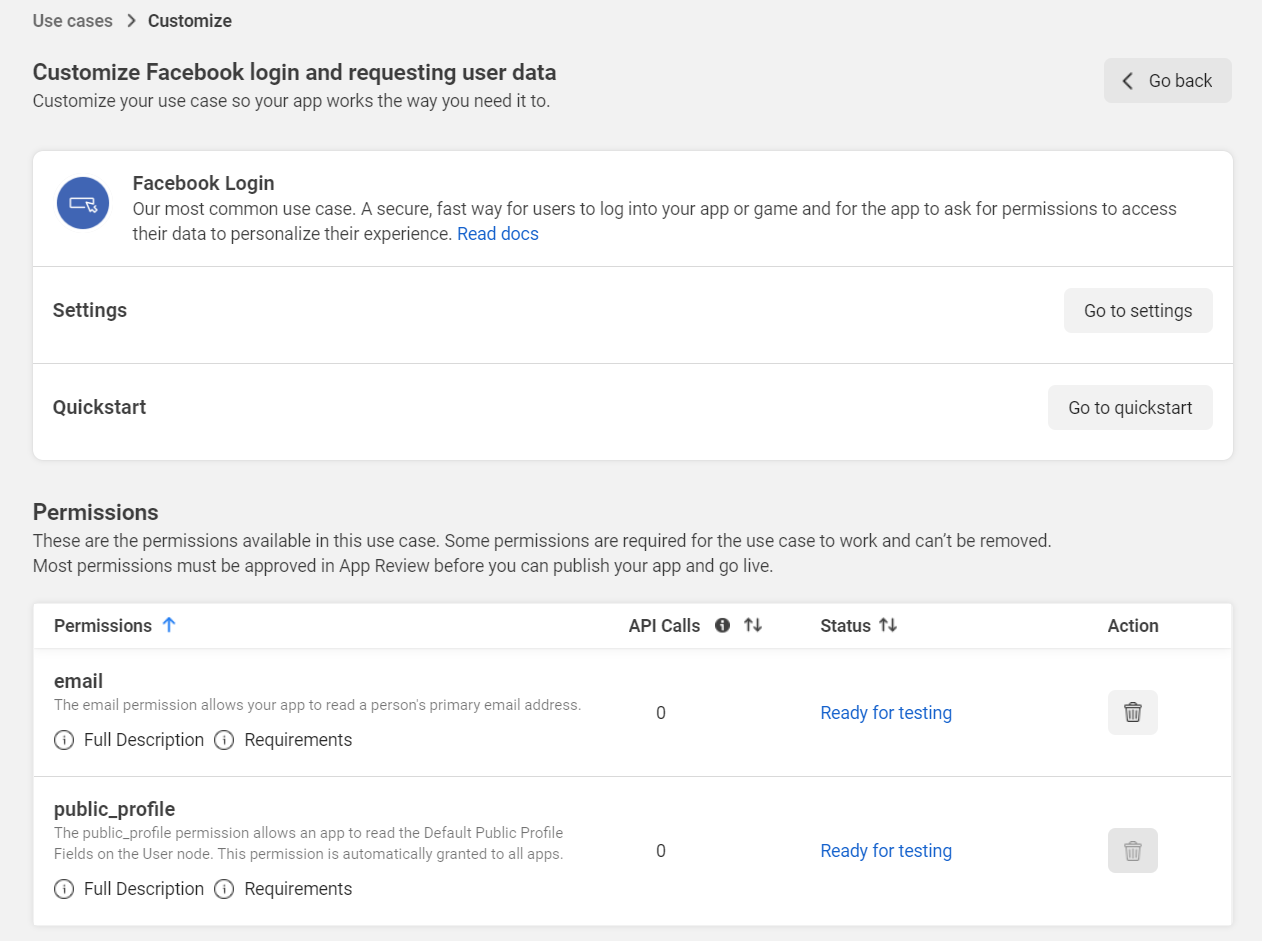

  14. In the Permissions section click Add next to email permission, which change the status to Ready for testing. Email permission on Facebook

  15. Click Go back

  16. In the left navigation bar, click App settings then select Basic

  17. Read the App ID and App Secret and save it for later

  18. Fill in the required details

3 - Go back to the FoxIDs authentication method in FoxIDs Control Client

  1. Click Show advanced in the top right corner of this configuration section
  2. Add the Optional custom SP client ID from Facebook called App ID
  3. Add the two scopes email and public_profile
  4. Set the Use PKCE switch to No
  5. Add the Client secret from Facebook called App Secret
  6. Set the Read claims from the ID token instead of the access token switch to Yes

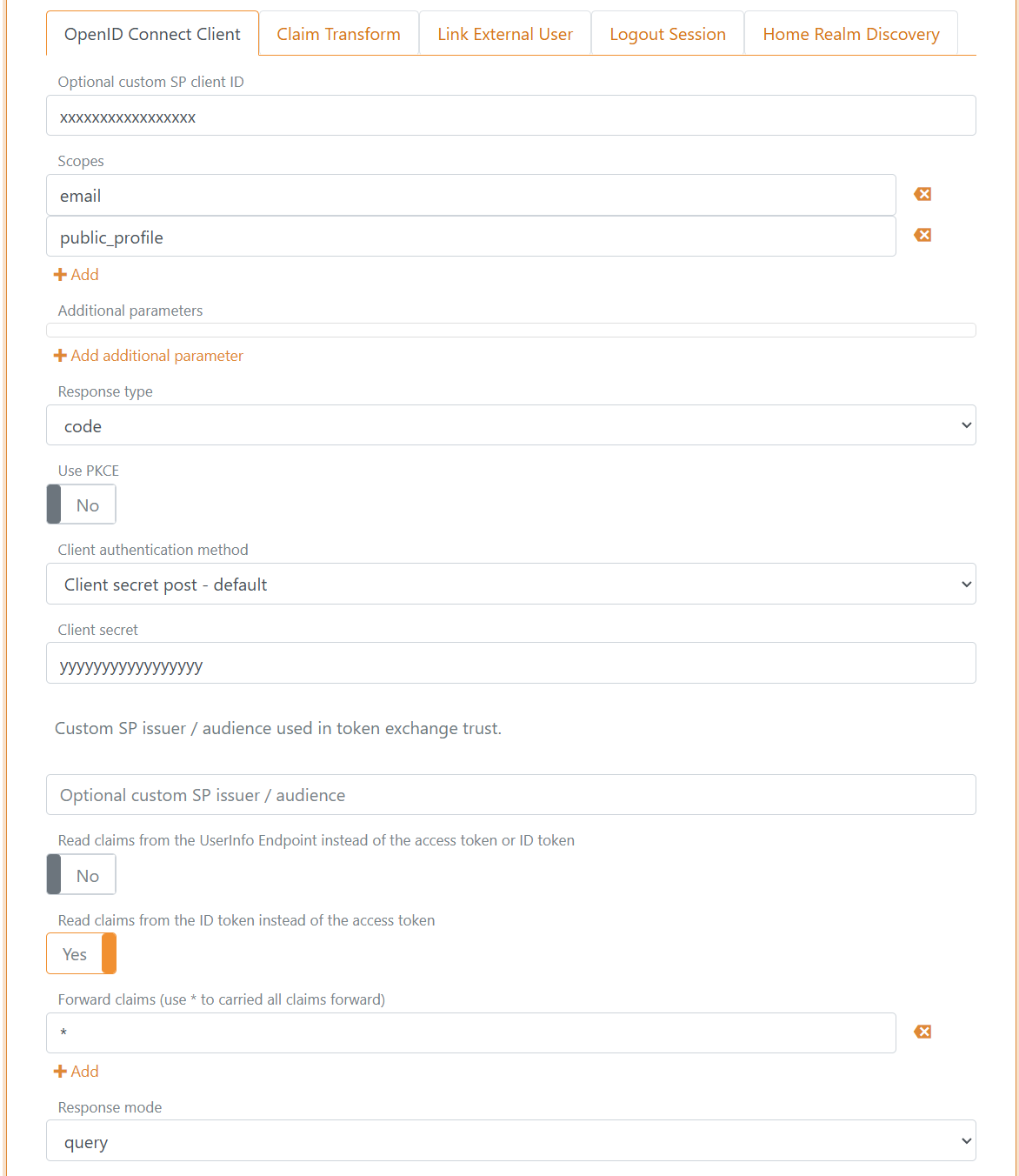

  7. As Response mode select query Configuration in FoxIDs
  8. Click Create
  9. Click Test authentication to test the Facebook connection

That's it, you are done.

Your new Facebook authentication method can be selected as an allowed authentication method in an application registration.
